Product Specifications

  • Display unit function and display features.
  • The Bottom of the Sensor Unit.

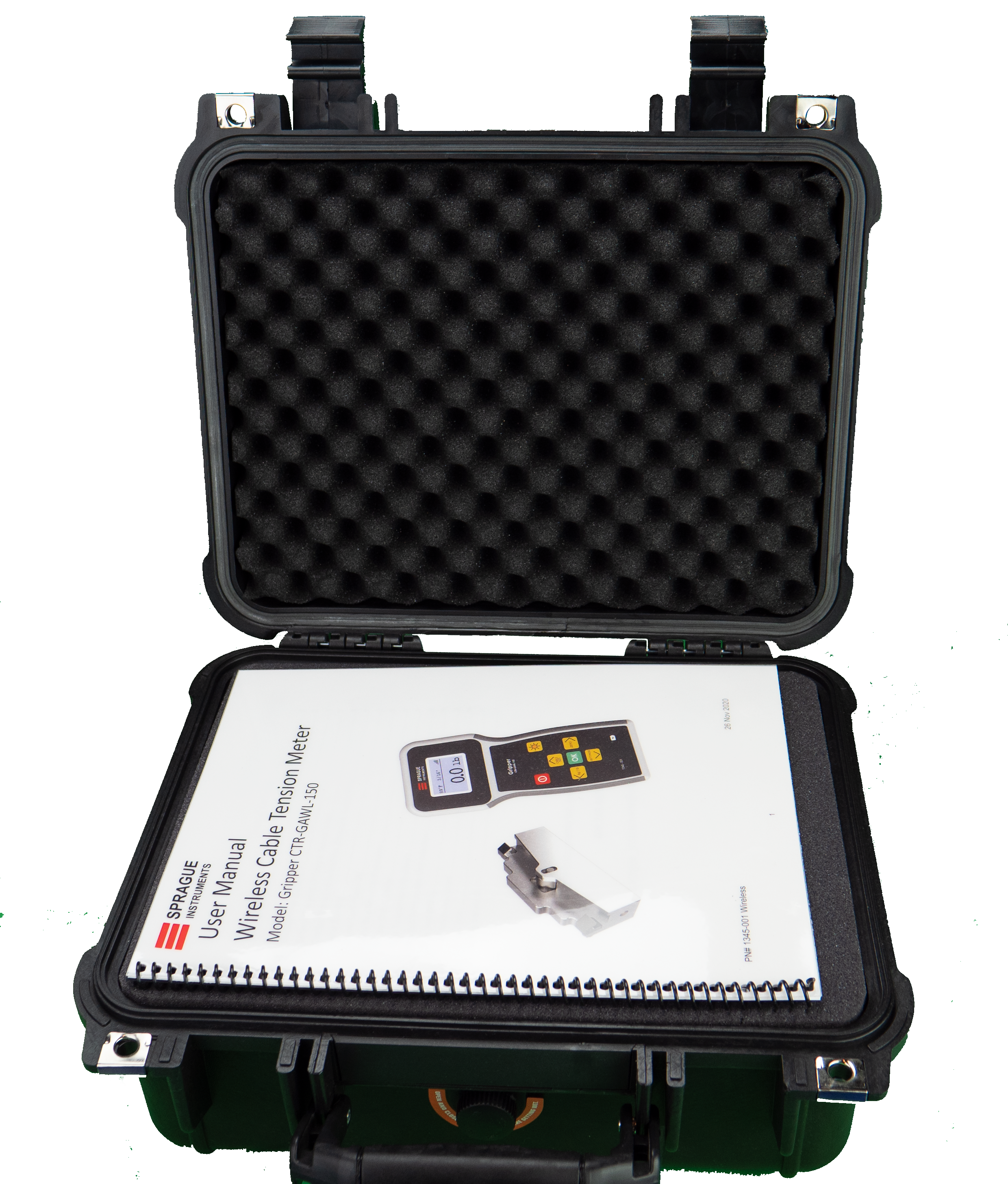

  • Includes carrying case with an easy-to-read, manual
  • One power supply charges both units at the same time.

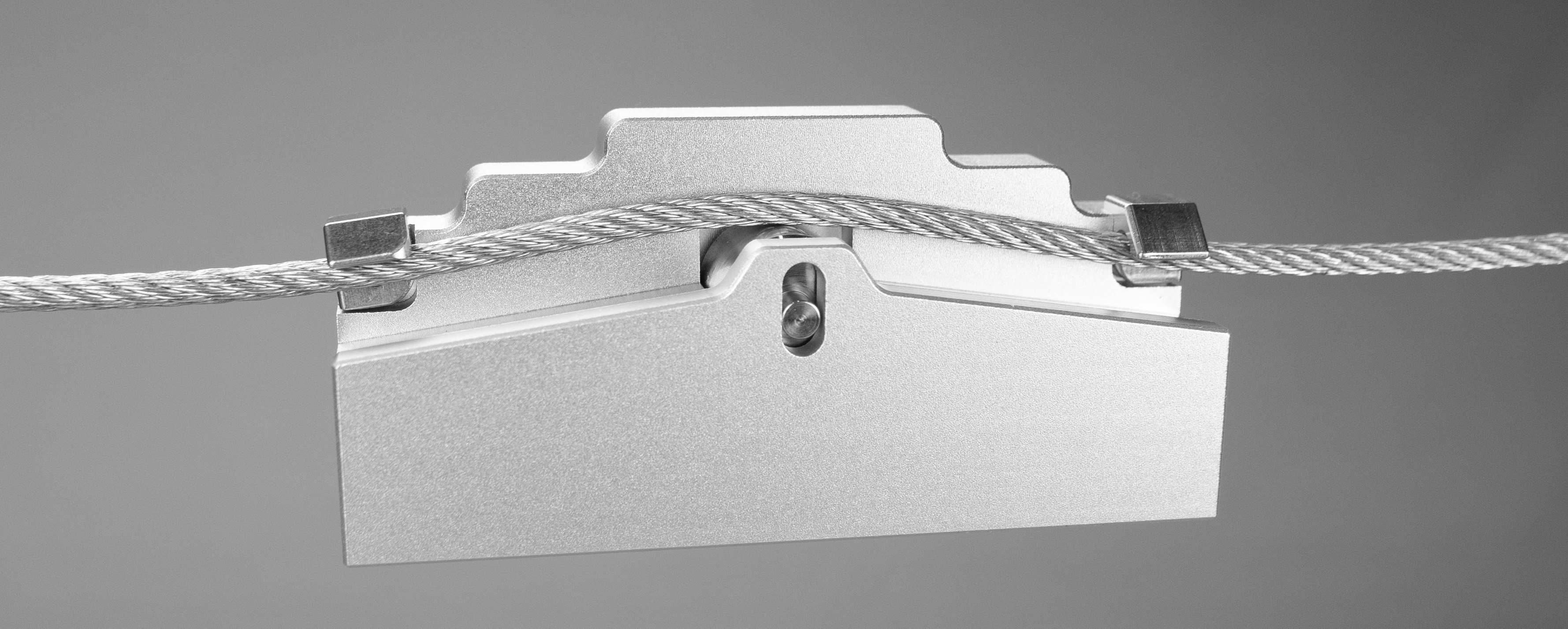

  • The Sensor Unit easily attaches to the cable. Stainless steel components provide durability, aluminum housing makes it lightweight.

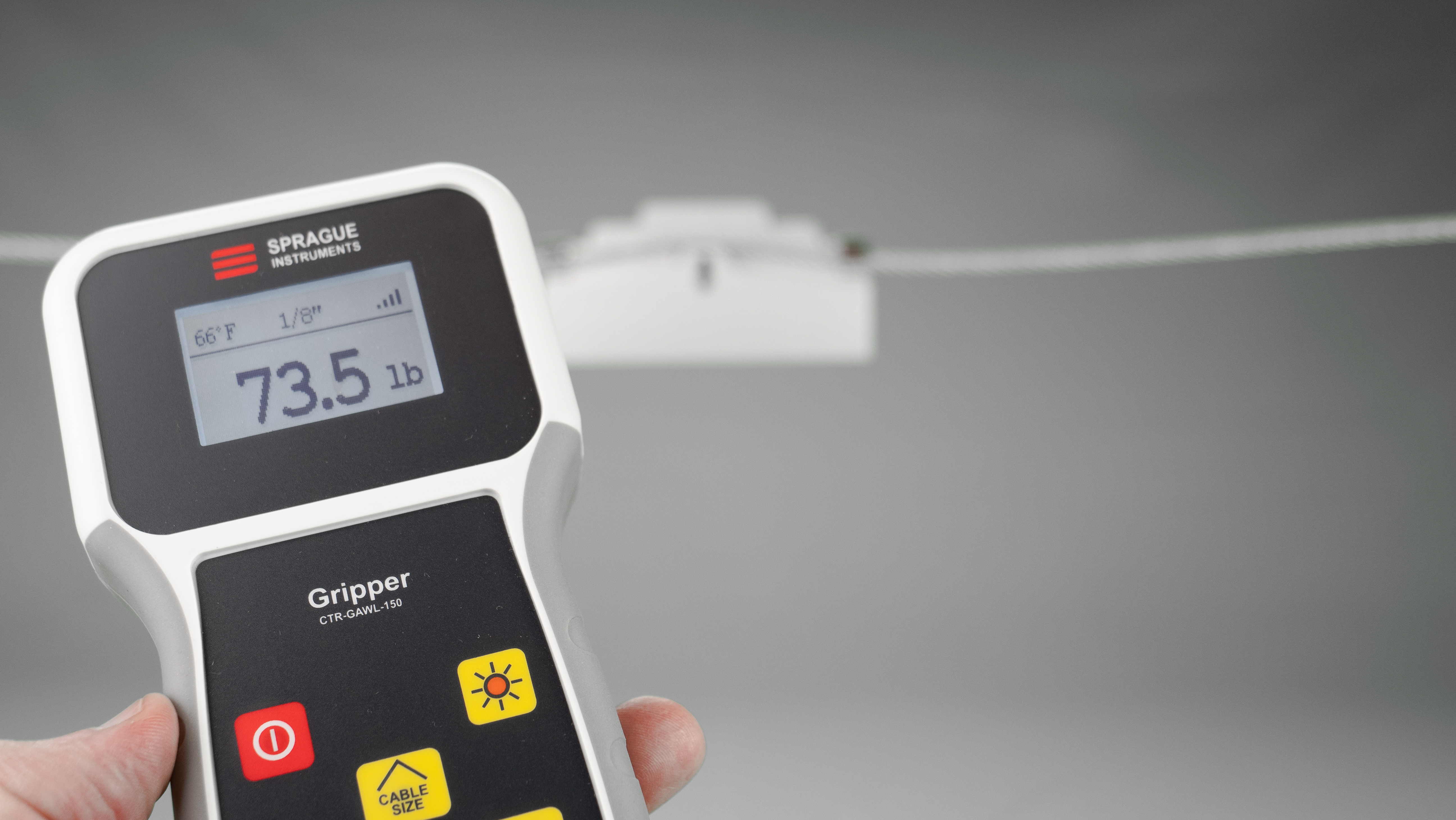

  • The wireless connection between Display Unit and Sensor Unit gives you real-time measurements. No guessing. No running back and forth.

Specifications

PropertyDetails
Scale Range10 to 150 Pounds
Scale Resolution1 Pound
Scale Tolerance+/- 2% of Full scale
Unit of MeasurementMetric – Kg, 0C
U.S. Standard – lb , 0F
Supported Cables Sizes1/16, 3/32, 1/8, 5/32, 3/16 inches
Ambient TemperatureSelectable oC and oF
Operating Temp Range14o to 100o F (-10o to 40o C)
Storage Temperature-4o to 122o F (-20o to 50o C)
Operating ModesMeasurement / Calibration / Firmware Update
Humidity5 to 95 %
CommunicationBLE 4.2 (Between Display Unit & Sensor Unit)
Wireless Range10 meters
Display Unit
Display160 x 128 Dot Matrix LCD
Back light ON/OFF option
Charging5V DC / Charge status Indicator
1900mAH – Li Po Rechargeable Battery
~10000 Reading in single charge with back light OFF
~3000 Reading in single charge with back light ON
Sleep modeActivated after 5 Mins of inactivity
Dimension164x80x29mm
Weight160gm (approx.)
HousingABS Plastic
Sensor Unit
Charging Voltage5VDC / Charge Status Indicator
Power500mAH – Li Po Rechargeable Battery
~4000 Reading in Single Charge
Sleep mode after 5 mins idle time
Dimension105x40x27mm
Weight240gm (approx.)
HousingCast Iron
