CTR-BCWL-30, Cable Bridal Cable

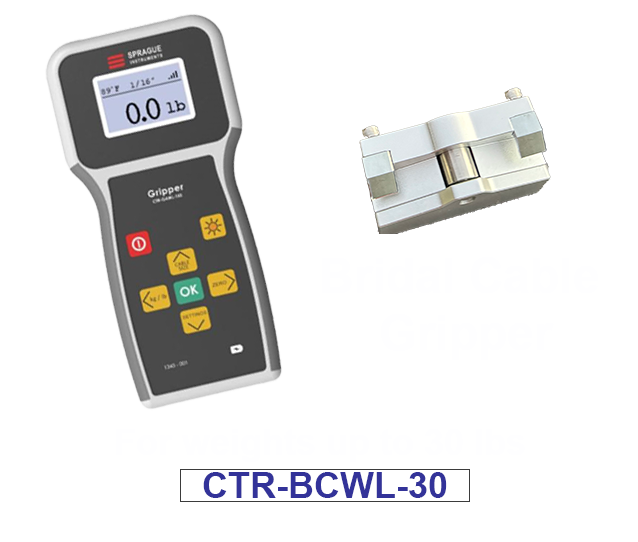

  • The Sprague Instruments Bridal Cable Gripper, model CTR-BCWL, is shown.

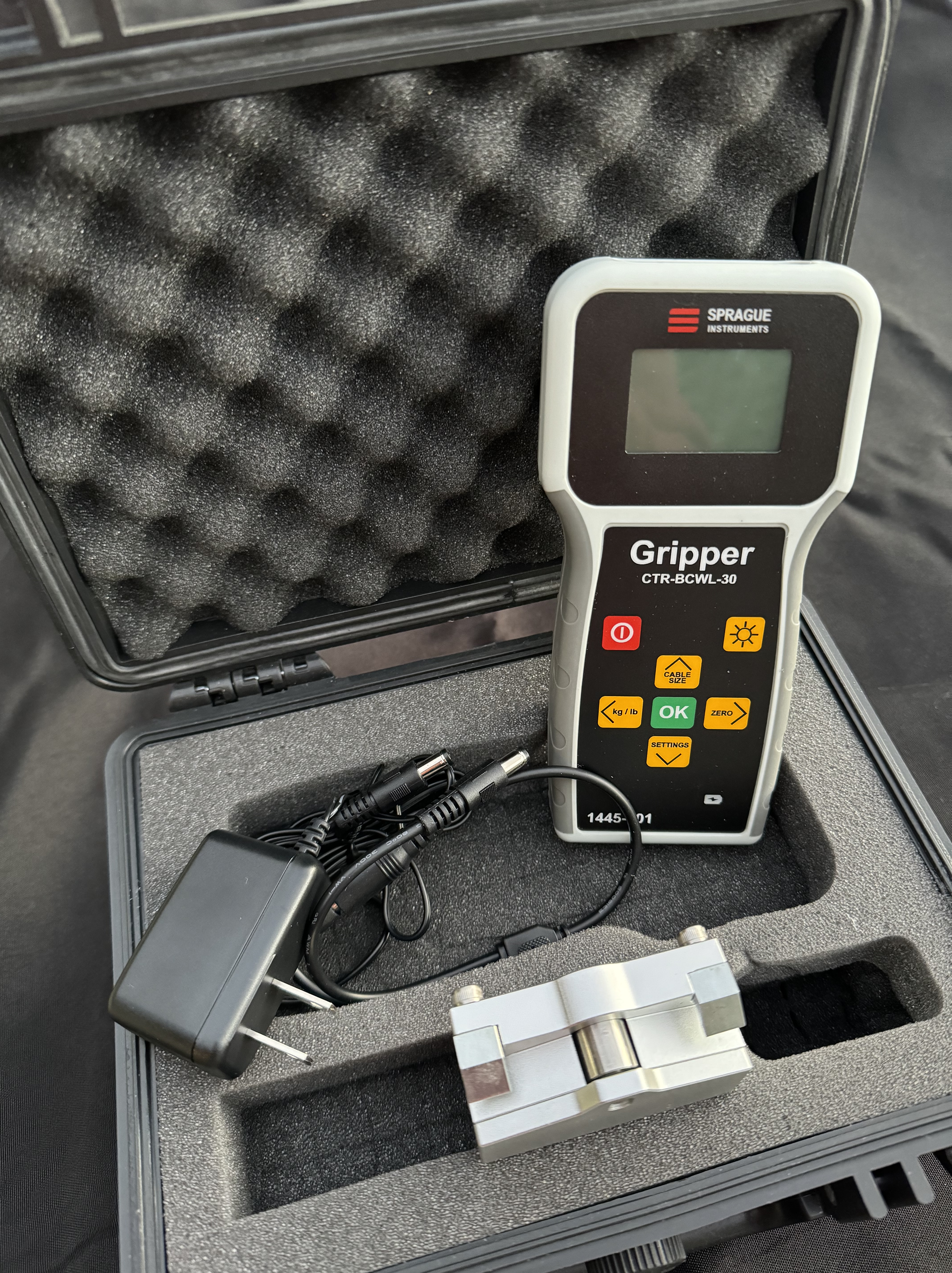

  • Includes carrying case with an easy-to-read, manual - one charger charges both the sensor and display case.
    Includes carrying case with an easy-to-read, manual – one charger charges both the sensor and display case.

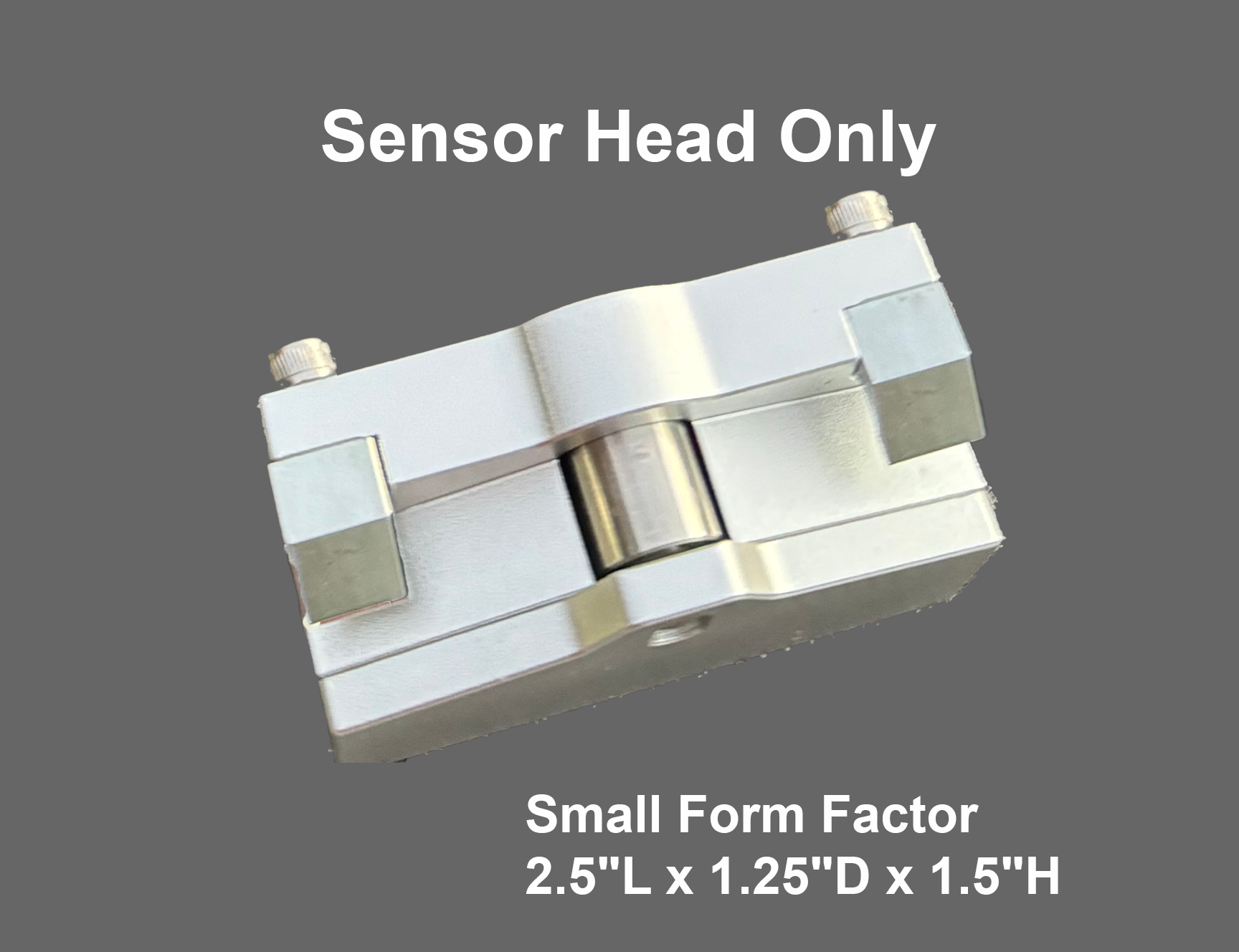

  • The Sprague Instruments model CTR-BCMWL-30 gripper sensor head for 10 to 30 lbs.

Specifications

PropertyDetails
Scale Range10 to 30 Pounds
Scale Resolution1 Pound
Scale Tolerance+/- 3% of Full scale
Unit of MeasurementMetric – Kg, 0C
U.S. Standard – lb , 0F
Supported Cables Sizes1/16, 3/32, 1/8 inches
Ambient TemperatureSelectable oC and oF
Operating Temp Range14o to 100o F (-10o to 40o C)
Storage Temperature-4o to 122o F (-20o to 50o C)
Operating ModesMeasurement / Calibration / Firmware Update
Humidity5 to 95 %
CommunicationBLE 4.2 (Between Display Unit & Sensor Unit)
Wireless Range10 meters

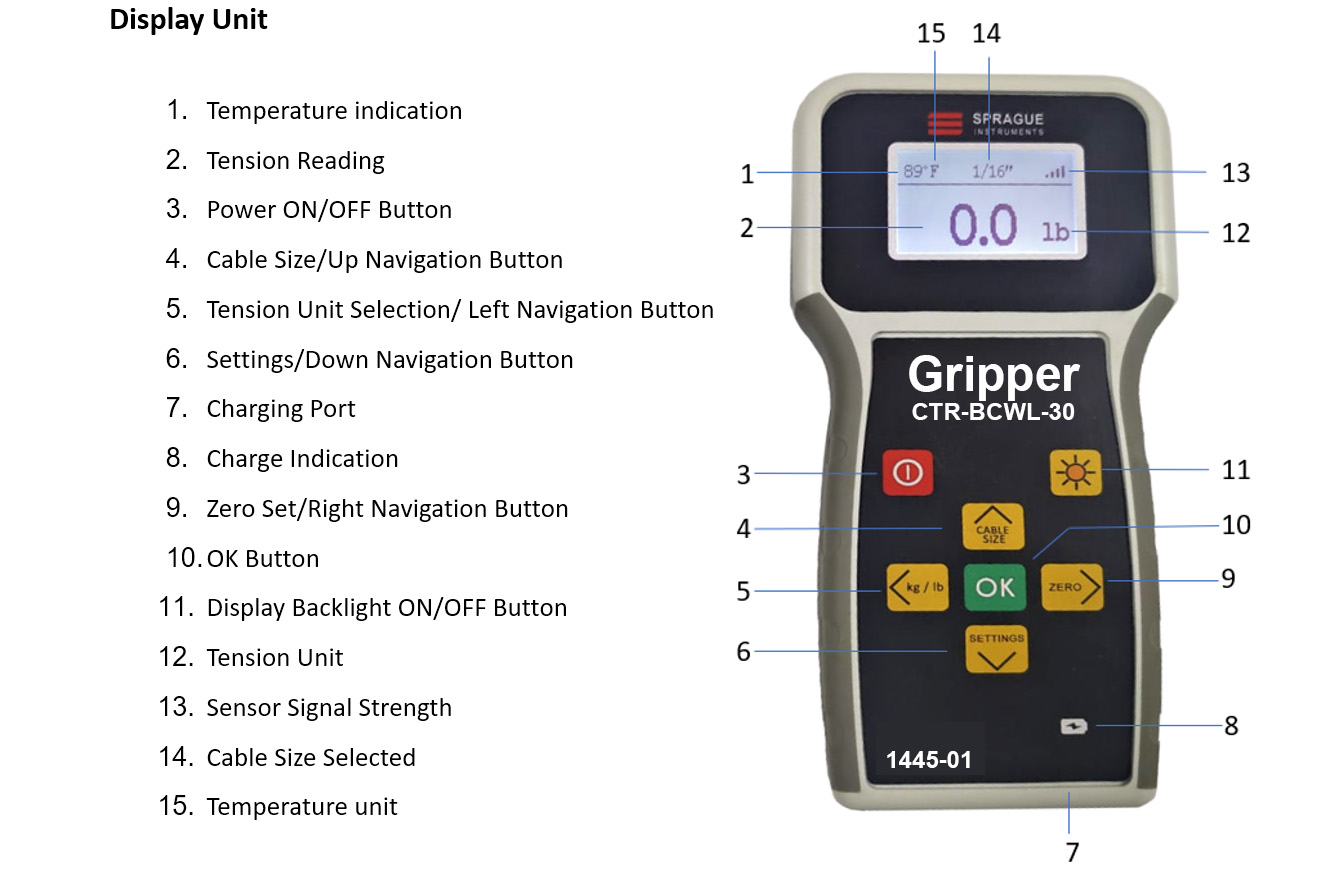

Display Unit
Display160 x 128 Dot Matrix LCD
Back light ON/OFF option
Charging5V DC / Charge Status Indicator
1,500mAH – Li Po Rechargeable Battery
~10,000 Readings on a single charge with the backlight OFF
~3,000 Readings on a single charge with the backlight ON
Sleep modeActivated after 5 Mins of inactivity
Dimension164x80x29mm
Weight160gm (approx.)
HousingABS Plastic
Sensor Unit
Charging Voltage5VDC / Charge Status Indicator
Power500mAH – Li Po Rechargeable Battery
~4,000 Readings with a Single Charge
Sleep mode after 5 mins idle time
Dimension2.5″Lx 1.25″D x 1.5″H
Weight240gm (approx.)
Housing6061 Aluminum

User Manual

Bridal Cable Tension Meter Manual, CTR-BCWL-30 (January 2024)Download
